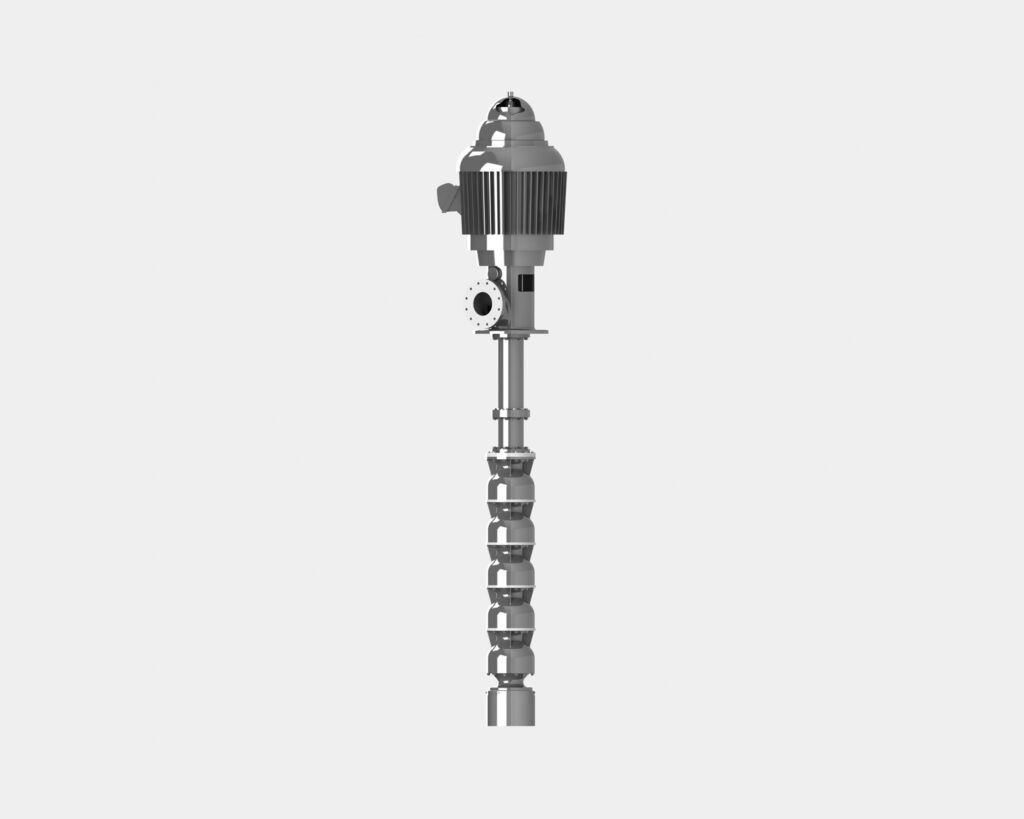

LLC VTP
CONFIGURATION
Vertical lineshaft – electric motor, hydraulic motor or diesel engine driven.
Vertical electro submersible.
DISCHARGE & PERFORMANCE
- 200 mm to 600 mm
- Flows up to 3960 m³/h
- Heads up to 170 m
- Pumping length up to 60 m
FEATURES
- Cartridge mechanical seal
- Spacer couplings minimise seal change downtime
- High grade materials – stainless steel impellers & shafts
- Muff couplings aid assembly/disassembly
- Flanged riser pipework
- Modular design
- Extended thrust bearing life
- Stiff shaft construction
COLOUR OPTIONS
Available in BLUE BS4800 18E53 (Water & Industrial) or RED RAL 3000 (Fire) as standard, with custom colour options available on request.
